{"title": "Megacli\u7684\u5c01\u88c5\u7248", "update_time": "2013-06-29 23:26:10", "tags": "megacli", "pid": "218", "icon": "linux.png"}

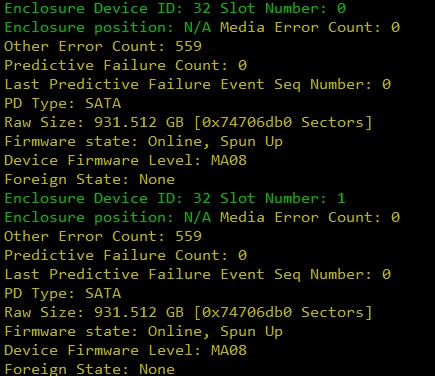

1.用于查看各个磁盘的状态，并高亮的megacli脚本 ``` /opt/MegaRAID/MegaCli/MegaCli64 -PDList -aAll -NoLog| grep -Ei '(enclosure|slot|error|firmware|pre|Foreign|^PD type|^Raw Size)' | awk '{if($0 ~ /Slot Number/ || $0 ~ /Enclosure/){printf("\033[32m%s ",$0);if($0 ~/Slot Number/) printf("\033[0m \n")}else if($0 ~ /bad/||$0 ~/Failed/||$0 ~ /Foreign State: Foreign/){print "\033[31m"$0"\033[0m"}else{print "\033[33m"$0"\033[0m"}}' ``` 输出结果示例：
2.用于查看各个RAID Logical Disk的Megacli脚本 ``` /opt/MegaRAID/MegaCli/MegaCli64 -LdPdInfo -aAll -NoLog|grep -Ei '(^Virtual Disk|^RAID Level|^PD type|^Raw Size|^Enclosure|^Slot|error|firmware)' | awk '{if($0~/^Virtual/||$0~/^RAID/){printf("\033[35m%s\033[0m\n",$0)}else if($0 ~ /^Enclosure/){printf("\033[31m%s: %s\033[0m ",$1,$4)}else if($0 ~ /^Slot/){printf("\033[31m%s\033[0m\n",$0)}else if($0~/^Other/||$0~/Firmware/){printf("\033[33m%s\033[0m\n",$0)}else if($0~/^Raw/){printf("\033[33m%s%s\033[0m\n",$2,$3)}else{printf("\033[33m%s\033[0m ",$0)}}' ``` 对于RAID Level的输出，参考下表，以对应相关的RAID级别

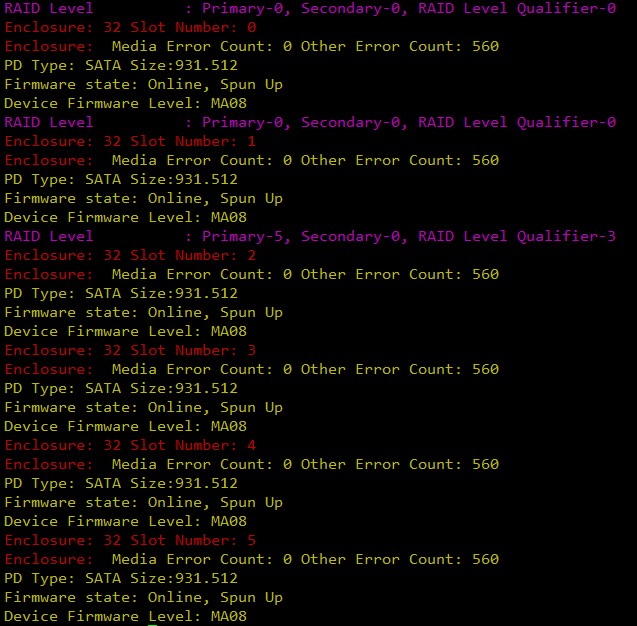

| RAID Level | RAID类型 | |------------------------|-----------| |RAID Level : Primary-1, Secondary-0, RAID Level Qualifier-0 |RAID 1 | |RAID Level : Primary-0, Secondary-0, RAID Level Qualifier-0 |RAID 0 | |RAID Level : Primary-5, Secondary-0, RAID Level Qualifier-3 |RAID 5 | |RAID Level : Primary-1, Secondary-3, RAID Level Qualifier-0 |RAID 10 | 结果示例：
